Secure SBC Supporting CAN Ringing Suppression

Supports Selective Wake-up Function to Build Ultra-Low Power Electrical Systems

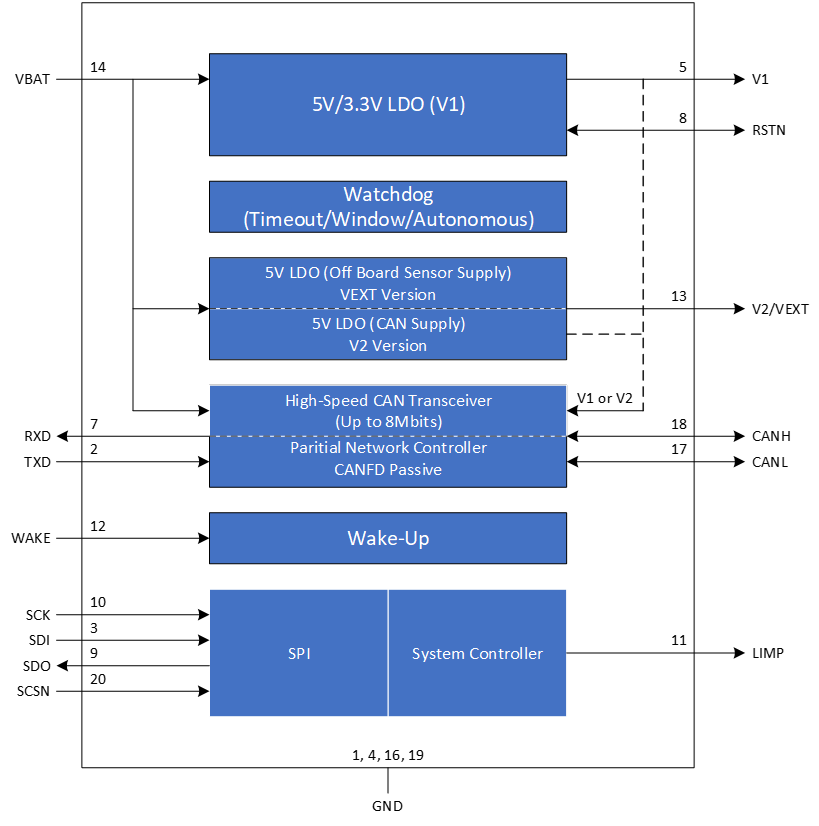

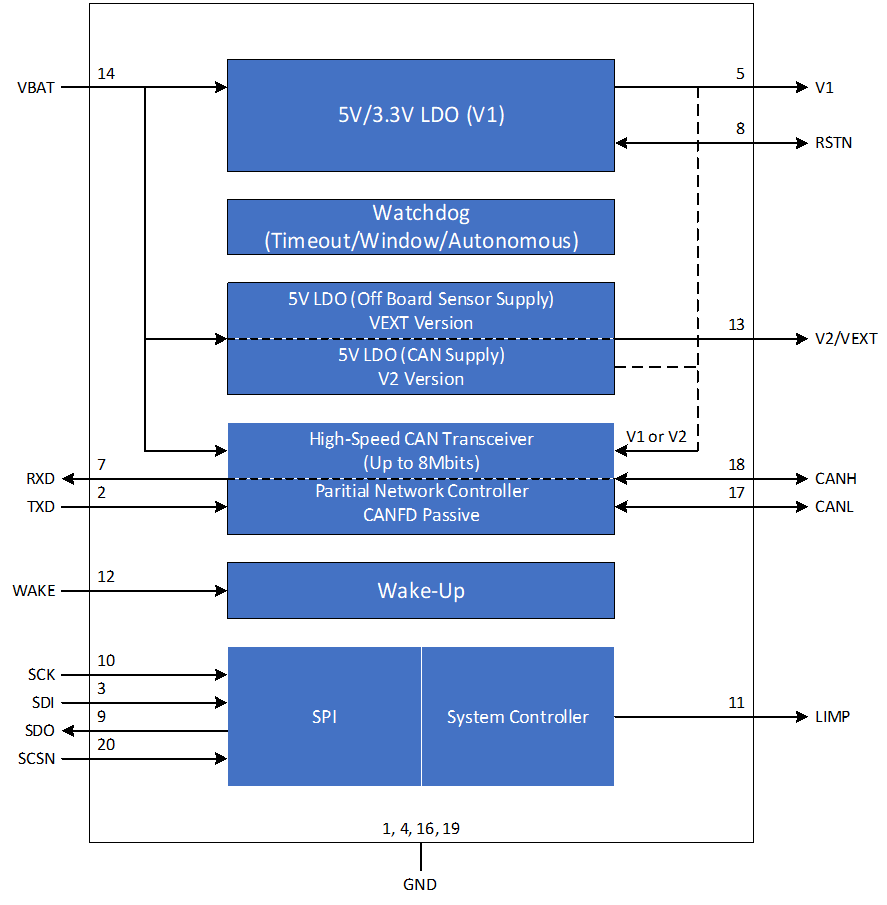

The Immorta IM1169 is a domestic automotive-grade SBC chip that integrates a CAN transceiver with Partial Networking (PN) management capabilities and Signal Improvement Capability (SIC). The CAN transceiver complies with the "ISO 11898-2:2024" physical layer compliance standard. Its CAN FD SIC feature supports data transmission rates up to 8 Mbps and provides seamless interoperability and excellent compatibility with various CAN bus devices, enabling efficient and stable data transmission in complex in-vehicle networks.

IM1169 is equipped with comprehensive fault monitoring and diagnostic functions, along with an integrated independent watchdog circuit, supporting ASIL-B functional safety product development. It is widely applicable to various automotive electronic scenarios. In addition, IM1169 provides excellent EMC performance, with its CAN pins reaching HBM ±8kV and achieving Class A in BCI Level IV (200mA) testing, satisfying the stringent electromagnetic compatibility requirements of modern vehicles.

• Compliant with AEC-Q100 automotive qualification

• Operating junction temperature: -40°C to +150°C

• Complies with ISO 11898-2:2016 and CiA 601-4 Electrical Physical Layer (EPL) specifications

• Supports CAN FD SIC ringing suppression function, supporting communication rates up to 8 Mbps

• Supports window and timeout mode watchdogs with redundant misconfiguration safety protection

• Supports low-power modes, featuring WAKE pin wake-up and CAN wake-up; wake-up sources can be identified via SPI

• Supports one selectable LDO1 3.3V/5V output, delivering up to 300mA current with ±2% accuracy

• Supports one LDO 5V output at 100mA, usable for CAN or external sensor power supply

• Supports SPI diagnostics for safety functions, detecting anomalies such as LDO overvoltage, undervoltage, overtemperature, short circuit, and overcurrent

• Supports Normal mode, low-power Standby mode, and low-power Sleep mode

• Supports LIMP (limp-home) mode output, with output logic customizable via MTP NVM configuration

• Supports RSTN bidirectional reset pin, with output pulse width customizable via MTP NVM

• Supports more than 500 MTP NVM programming cycles

Product Highlights & Core Competencies

• 8 Mbit/s CAN SIC: Ringing suppression for high-speed networks.

• Selective Wake-up: PN capabilities for ultra-low power consumption.

• Safety Diagnostics: Advanced safety monitoring and protection via SPI configuration.

• Dual Power Support: Independent 3.3V/5V LDO rails.

• High Customizability: 500+ times MTP NVM programming for custom behaviors.

Highlights

	8Mbit/s CAN SIC
	Selective Wake-up, Low Power Consumption
	Safety Diagnostics & Protection, SPI Configuratio
	3.3V/5V Power Supply Support
	Customizable Configuration, 500-cycle MTP NVM

Applications

Product Ordering Matrix

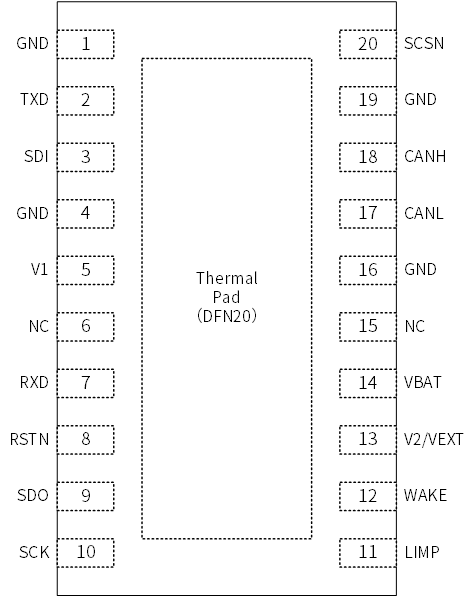

Pin Configuration
